TPS2066CDGNR-2 - Texas Instruments

Description: Dual Channel Current Limiting Switch

Download TPS2066CDGNR-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

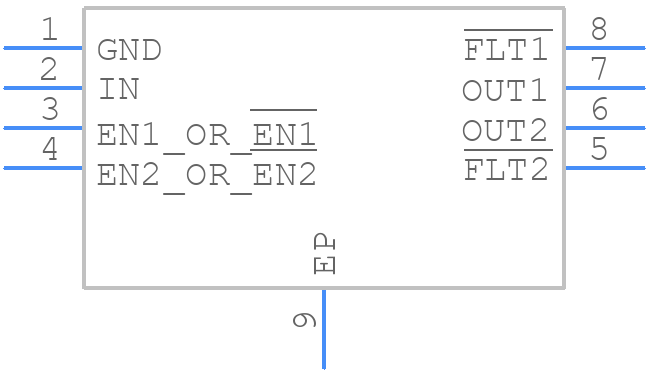

TPS2066CDGNR-2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2066CDGNR-2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN (S-PDSO-G8)_4
click to zoom
3D Models
TPS2066CDGNR-2 - Texas Instruments - 3D model - Small Outline Packages - DGN (S-PDSO-G8)_4
click to zoom

TPS2066CDGNR-2 Details

  • Manufacturer Part Number:

    TPS2066CDGNR-2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching:

    MAKE-BEFORE-BREAK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2066CDGNR-2 Frequently Asked Questions (FAQs)

  • The maximum capacitance depends on the application and the desired performance. However, as a general guideline, TI recommends using capacitors with a capacitance of 10uF or less to ensure stability and optimal performance.
  • To ensure stability, follow the layout guidelines in the datasheet, use a low-ESR capacitor, and add a 1-2kΩ resistor in series with the capacitor to dampen oscillations. Additionally, ensure the input voltage is within the recommended range and the output is properly decoupled.
  • The minimum input voltage required for the TPS2066CDGNR-2 to operate is 2.7V. However, the device can operate down to 2.5V with reduced performance and efficiency.
  • The TPS2066CDGNR-2 is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. For high-temperature applications, consider using a device with a higher temperature rating or implementing thermal management techniques.
  • The output voltage of the TPS2066CDGNR-2 is determined by the resistor divider network connected to the FB pin. Use the formula: Vout = 1.25V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2066CDGNR-2 Overview

Use the download button to access the TPS2066CDGNR-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
