TPS2066DGNR-1 - Texas Instruments

Description: Power Switch ICs - Power Distribution Crnt-Ltd Pwr-Dist Sw

Download TPS2066DGNR-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

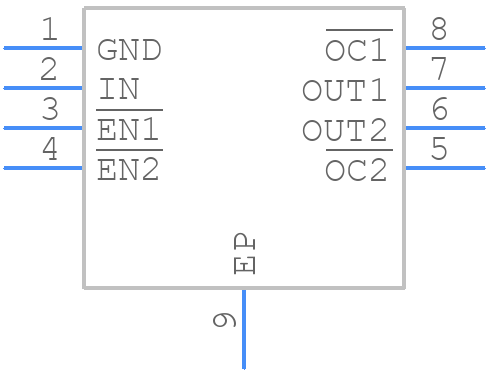

TPS2066DGNR-1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2066DGNR-1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008C
click to zoom
3D Models
TPS2066DGNR-1 - Texas Instruments - 3D model - Small Outline Packages - DGN0008C
click to zoom

TPS2066DGNR-1 Details

  • Manufacturer Part Number:

    TPS2066DGNR-1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2066DGNR-1 Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the output of the TPS2066DGNR-1 is 1.5A. However, it's recommended to limit the output current to 1A for optimal performance and to prevent overheating.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines in the datasheet. Additionally, make sure to use a high-quality output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value (at least 10uF).
  • The EN pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. You can use the EN pin to turn the device on and off, or to implement power sequencing in your system.
  • The output voltage of the TPS2066DGNR-1 is determined by the resistive divider network formed by R1 and R2. The output voltage can be calculated using the formula: Vout = (R2 / (R1 + R2)) * Vin, where Vin is the input voltage.
  • The TPS2066DGNR-1 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly heatsinked and that the thermal design is adequate to prevent overheating.
