TPS2069DGNG4 - Texas Instruments

Description: USB Power SW Hi Side/DIST Single 5.5V 2.1A 8-Pin HVSSOP EP Tube

Download TPS2069DGNG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

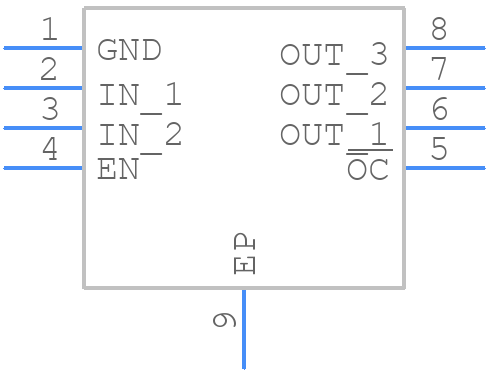

TPS2069DGNG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2069DGNG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008C
click to zoom
3D Models
TPS2069DGNG4 - Texas Instruments - 3D model - Small Outline Packages - DGN0008C
click to zoom

TPS2069DGNG4 Details

  • Manufacturer Part Number:

    TPS2069DGNG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    UNDERVOLTAGE LOCKOUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2069DGNG4 Frequently Asked Questions (FAQs)

  • The maximum capacitance is not explicitly stated in the datasheet, but TI recommends keeping the output capacitance below 10uF to ensure stability. However, it's possible to use higher capacitance values with proper PCB layout and design considerations.
  • To ensure stability, follow the guidelines in the TI app note 'TPS2069 Stability Analysis' (SLVA477). This app note provides a step-by-step process to calculate the maximum output capacitance and ESR for a specific application.
  • The datasheet specifies a minimum input voltage of 2.7V, but it's recommended to use a minimum input voltage of 3V to ensure proper operation and to account for voltage drops in the system.
  • The TPS2069DGNG4 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • Follow the guidelines in the TI app note 'TPS2069 PCB Layout Considerations' (SLVA478). This app note provides recommendations for PCB layout, component placement, and routing to minimize noise and ensure reliable operation.
