TPS2111APW - Texas Instruments

Description: Pwr Mux Autoswitch 2.8V to 5.5V 1A Texas Instruments TPS2111A, Power Multiplexer Autoswitching 1A 5.5 V max. 8-Pin TSSOP

Download TPS2111APW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

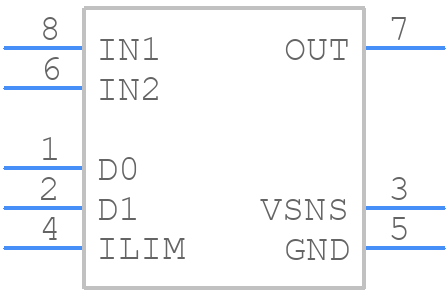

TPS2111APW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2111APW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPS2111APW-
click to zoom
3D Models
TPS2111APW - Texas Instruments - 3D model - Small Outline Packages - TPS2111APW-
click to zoom

TPS2111APW Details

  • Manufacturer Part Number:

    TPS2111APW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    2.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2111APW Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS2111APW is 2A per channel, but it can be limited by the thermal performance of the PCB and the ambient temperature.
  • Proper thermal management can be achieved by providing a sufficient copper area on the PCB, using thermal vias, and ensuring good airflow around the device. A thermal pad on the bottom of the package can also be connected to a copper plane on the PCB to improve heat dissipation.
  • The EN (enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.
  • The output voltage of the TPS2111APW can be configured using external resistors. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. The resistors should be connected between the FB (feedback) pin and the output voltage pin.
  • The PG pin is an open-drain output that indicates when the output voltage is within regulation. It can be used to monitor the power supply status and to implement power sequencing or fault detection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2111APW Overview

Use the download button to access the TPS2111APW schematic symbol, PCB footprint, and 3D model.
