- Part Number TPS2112APW
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW0008A
- Released Date Dec 2, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TPS2112APW Details
-
Manufacturer Part Number:
TPS2112APW
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
8
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
TPS2112APW Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the TPS2112A datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and achieve optimal performance.
-
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. Texas Instruments provides guidelines for capacitor selection in the datasheet, including recommended values for input and output capacitance, ESR, and voltage rating. Additionally, the TI Power Management Guide can be consulted for more detailed information.
-
The TPS2112APW has a maximum ambient operating temperature of 85°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating, and the maximum junction temperature is 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
-
The TPS2112APW has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the input voltage. The device will limit the output current to a safe level during an overcurrent event. Additionally, an external current sense resistor can be used to monitor the output current and implement custom overcurrent protection schemes.
-
Yes, the TPS2112APW is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is manufactured using a high-reliability process. However, it's essential to consult the datasheet and relevant application notes to ensure that the device meets the specific requirements of the target application.
Trust Checks
Community Provided
System Verified
Community Approved
TPS2112APW Overview

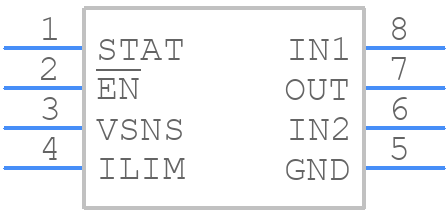

Use the download button to access the TPS2112APW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS21,
or try a keyword search, such as Power Management Circuits
