CAN SWITCH A VOLTAGE AS LOW AS 1.5V AS LONG AS THERE IS A MIN OF 2.8V AT ONE OF THE I/P POWER PINS
Adjustable Threshold:
YES
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.4 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.09 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.5 V
Supply Voltage-Nom (Vsup):
2.8 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS2112PWG4 Frequently Asked Questions (FAQs)
The TPS2112PWG4 can deliver up to 2.5A of current from the USB port, but this is limited by the thermal performance of the package and the PCB design. It's recommended to keep the current below 2A for reliable operation.
The TPS2112PWG4 is a USB-C power switch, but it does not have built-in PD controller functionality. You'll need to use an external PD controller, such as the TPS65982, and connect it to the TPS2112PWG4's control pins to enable PD functionality.
The EN (enable) pin is used to turn the TPS2112PWG4 on and off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use this pin to control the power state of the USB port, for example, to implement power-saving modes or to disconnect the USB port during system shutdown.
The TPS2112PWG4 has built-in OCP and SCP features. When an overcurrent or short-circuit condition is detected, the device will automatically limit the current or disconnect the USB port. You can adjust the OCP threshold using external resistors, and you can also use the FAULT pin to monitor the device's fault status.
Yes, the TPS2112PWG4 can be used with a USB hub or other downstream devices. However, you'll need to ensure that the total current drawn from the USB port does not exceed the device's maximum current rating. You may also need to add additional circuitry to handle the increased current requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2112PWG4 Overview

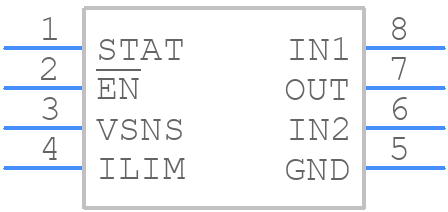

Use the download button to access the TPS2112PWG4 schematic symbol, PCB footprint, and 3D model.
