Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for power management ICs, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and resistance.
The TPS2115ADRBTG4 has a power-good output (PG) that can be used to monitor the output voltage. It's recommended to use this signal to ensure the device is properly powered up and configured before enabling the load. Additionally, the EN input can be used to control the device's power state, and it's recommended to use a pull-up resistor to ensure the device is enabled during startup.
The maximum current rating of the TPS2115ADRBTG4 is 2A. To calculate the maximum load current, you need to consider the input voltage, output voltage, and efficiency of the device. The datasheet provides a formula to calculate the maximum load current based on these parameters.
The TPS2115ADRBTG4 has a built-in overcurrent protection (OCP) feature that limits the output current to prevent damage to the device. The device also has a fault detection feature that can detect output overvoltage, undervoltage, and overtemperature conditions. The datasheet provides more information on how to use these features and how to configure the device for fault detection.
The TPS2115ADRBTG4 is rated for operation up to 125°C, but it's essential to consider thermal management to ensure reliable operation. The datasheet provides thermal resistance values and recommends using a heat sink or thermal pad to reduce the junction temperature. It's also important to follow proper PCB design and layout practices to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2115ADRBTG4 Overview

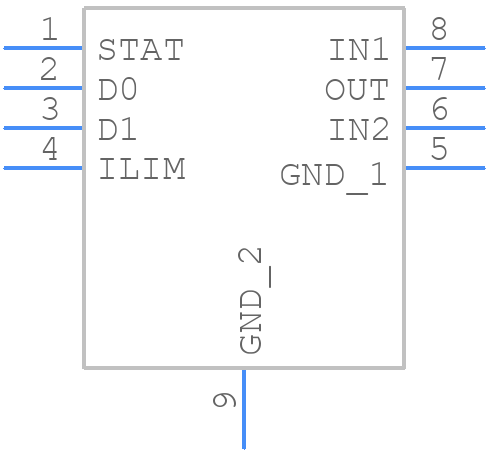

Use the download button to access the TPS2115ADRBTG4 schematic symbol, PCB footprint, and 3D model.
