TPS2202AIDB - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS2202AIDB - PC Card Power Interface Switch with Serial PCMCIA Controller Reset, 2 Outputs, 13.5V, 1.3A, SSOP-30

Download TPS2202AIDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

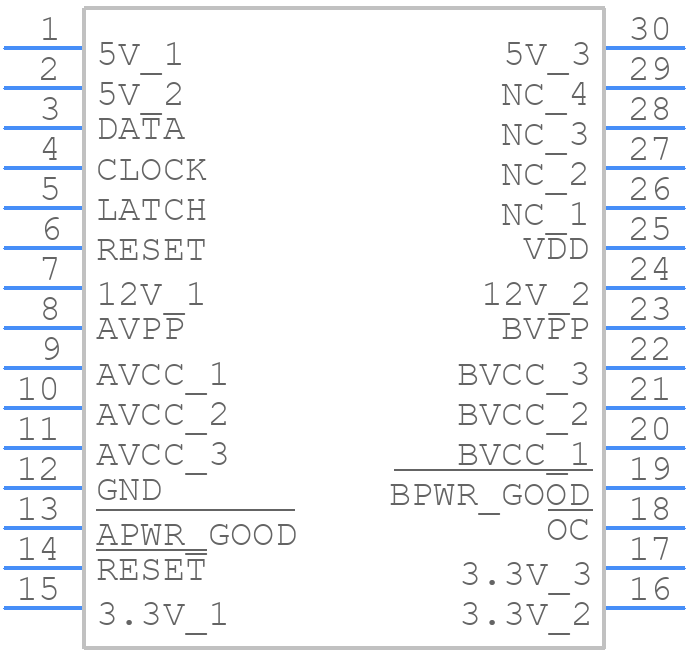

TPS2202AIDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2202AIDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-30)
click to zoom
3D Models
TPS2202AIDB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-30)
click to zoom

TPS2202AIDB Details

  • Manufacturer Part Number:

    TPS2202AIDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-30

  • Pin Count:

    30

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    0.15 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TPS2202AIDB Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the output of the TPS2202AIDB is 2A, but it's recommended to limit it to 1.5A for reliable operation and to prevent overheating.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a high-quality output capacitor with low ESR, and add a 10nF-100nF ceramic capacitor between the VIN and GND pins to filter out noise.
  • The TPS2202AIDB is rated for operation up to 85°C, but its performance and reliability may degrade at higher temperatures. If you need to operate in a high-temperature environment, consider using a heat sink or a thermally-enhanced package.
  • The output voltage of the TPS2202AIDB can be adjusted by using a resistive divider network between the VOUT and GND pins. The ratio of the resistors determines the output voltage, but make sure to follow the recommended voltage range and stability guidelines.
  • While the TPS2202AIDB can handle high currents, it's not recommended for powering high-current loads like motors or relays due to its limited power dissipation and potential for overheating. Consider using a more suitable regulator or a dedicated motor driver IC for such applications.
