SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS2224APWP Frequently Asked Questions (FAQs)
The maximum operating temperature range for the TPS2224APWP is -40°C to 85°C. However, it's recommended to operate within -20°C to 70°C for optimal performance.
To ensure proper power-on and power-off, make sure to follow the recommended power-up and power-down sequencing in the datasheet. Also, ensure that the input voltage is within the recommended range and that the output capacitors are properly sized.
The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as X5R or X7R, to minimize voltage ripple and ensure stable operation.
While the TPS2224APWP can handle high currents, it's essential to ensure that the device is properly heat-sinked and that the input voltage is within the recommended range. Additionally, consider using a thermal pad or heat sink to dissipate heat and prevent overheating.
To troubleshoot issues, start by verifying the input voltage, output load, and output capacitor values. Check for any signs of overheating, and ensure that the device is properly heat-sinked. Also, review the PCB layout to ensure that the device is properly decoupled and that there are no noise or interference issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2224APWP Overview

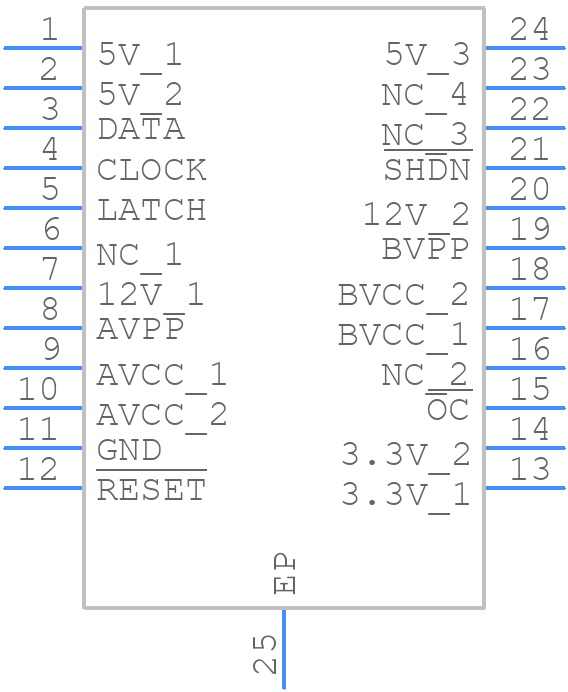

Use the download button to access the TPS2224APWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
