The maximum input voltage that can be applied to the TPS2226DB is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation and to prevent damage to the device.
No, the TPS2226DB is a low-side switch, meaning it can only switch the ground connection of a load. It's not suitable for high-side switching applications. If you need a high-side switch, consider using a different device, such as the TPS229xx family.
To ensure the TPS2226DB turns off completely when the input is low, make sure to pull the input pin low enough to meet the minimum input voltage threshold (typically around 0.8V). Additionally, consider adding a pull-down resistor to the input pin to ensure it's properly discharged when the input is low.
Yes, the TPS2226DB can be used to switch inductive loads, but you'll need to add external components to protect the device from back-EMF and voltage spikes. Consider adding a flyback diode and/or a snubber circuit to ensure reliable operation and to prevent damage to the device.
The maximum current that the TPS2226DB can handle is 2A, as specified in the datasheet. However, the actual current handling capability may be lower depending on the operating conditions, such as the input voltage, ambient temperature, and PCB layout. Be sure to check the datasheet and perform thermal calculations to ensure the device can handle the required current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2226DB Overview

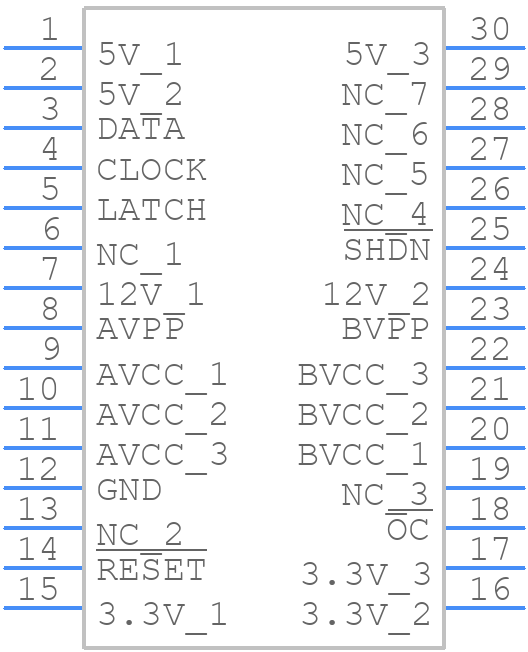

Use the download button to access the TPS2226DB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
