TPS22810DRVR - Texas Instruments

Description: 18V, 3A, 79mΩ Load Switch with Adjustable Rise Time, Adj. Quick Output Discharge, & Thermal Shutdown

Download TPS22810DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

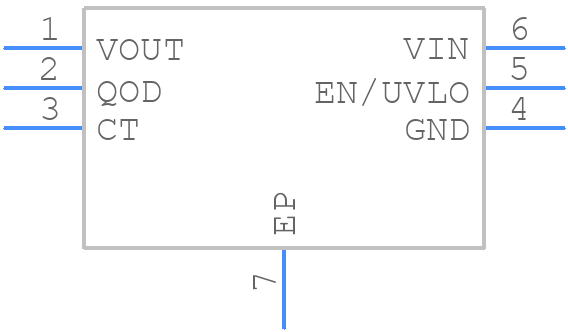

TPS22810DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22810DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV (S-PWSON-N6)
click to zoom
3D Models
TPS22810DRVR - Texas Instruments - 3D model - Small Outline No-lead - DRV (S-PWSON-N6)
click to zoom

TPS22810DRVR Details

  • Manufacturer Part Number:

    TPS22810DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    Load switch

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS22810DRVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS22810DRVR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and in application notes.
  • The choice of input and output capacitors depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The TPS22810DRVR can handle input voltages up to 18V, but it is recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TPS22810DRVR can be adjusted by changing the value of the feedback resistors (R1 and R2) according to the formula: Vout = 0.8V x (1 + R2/R1). The output voltage range is from 0.8V to 15V.
  • The TPS22810DRVR can deliver up to 2A of output current, but the maximum output current depends on the input voltage, output voltage, and ambient temperature. It is recommended to check the datasheet for the safe operating area (SOA) curves to determine the maximum output current for a specific application.
