A good PCB layout for the TPS22920YZPT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency signals.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure the input and output capacitors are of high quality and have low ESR. It's also recommended to add a small resistor (around 1-2 ohms) in series with the output capacitor to dampen any oscillations.
The TPS22920YZPT can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
The TPS22920YZPT is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. It's also essential to ensure good thermal design and heat dissipation to prevent overheating.
To troubleshoot issues with the TPS22920YZPT, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout meet the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, try replacing the device or checking for any damage or contamination on the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22920YZPT Overview

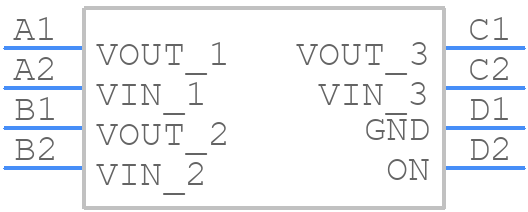

Use the download button to access the TPS22920YZPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
