Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
To ensure stable operation with a high-ESR output capacitor, it's recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve the overall capacitance and reduce the ESR. Additionally, the output capacitor should be placed close to the device and connected to the output pin using a short, wide trace.
The TPS22924DYZPT has an absolute maximum input voltage rating of 6V. However, it's recommended to operate the device within the specified input voltage range (2.7V to 5.5V) to ensure reliable operation and prevent damage to the device.
The TPS22924DYZPT is rated for operation up to 85°C (junction temperature). However, the device's performance and reliability may degrade at higher temperatures. It's essential to ensure proper thermal management, such as using a heat sink or reducing the device's power dissipation, to maintain reliable operation in high-temperature environments.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily dependent on the output capacitor value, ESR, and the switching frequency. The noise is primarily dependent on the device's internal switching frequency and the output capacitor value.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22924DYZPT Overview

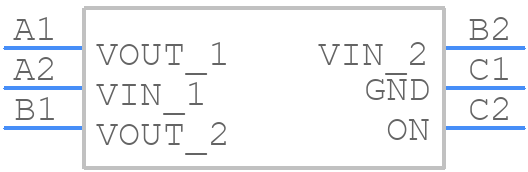

Use the download button to access the TPS22924DYZPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
