TPS22933ARSET - Texas Instruments

Description: Power Switch ICs - Power Distribution Small Triple-Input P WR Multiplexer

Download TPS22933ARSET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

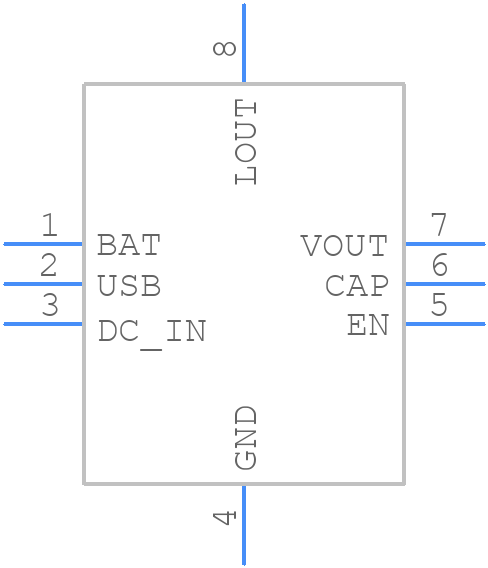

Symbol
TPS22933ARSET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22933ARSET - Texas Instruments PCB footprint - Other - Other - RSE0008A
click to zoom
3D Models
TPS22933ARSET - Texas Instruments - 3D model - Other - RSE0008A
click to zoom

TPS22933ARSET Details

  • Manufacturer Part Number:

    TPS22933ARSET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    1.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    4.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

TPS22933ARSET Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the application note SLVA883. It's essential to follow these guidelines to minimize parasitic inductance and ensure proper operation.
  • The input capacitor value depends on the input voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a value between 1-10 μF, with a voltage rating at least 1.5 times the input voltage. TI's Webench Power Designer tool can help with capacitor selection.
  • The TPS22933ARSET has a maximum output current rating of 3 A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the device's thermal performance and power dissipation to ensure reliable operation.
  • The TPS22933ARSET has an operating junction temperature range of -40°C to 125°C. While it can operate in high-temperature environments, it's essential to consider the device's power dissipation, thermal resistance, and derating factors to ensure reliable operation.
  • The TPS22933ARSET has a built-in overcurrent protection feature that limits the output current to a maximum of 4 A. You can also use an external current sense resistor and a comparator to implement custom overcurrent protection.
