A good PCB layout for the TPS22953DQCR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency signals.
To ensure the TPS22953DQCR is properly configured, you should carefully review the datasheet and application notes, and consider factors such as input voltage, output voltage, output current, and switching frequency. You may also want to consult with a Texas Instruments application engineer or use online design tools and calculators to help with the design process.
The TPS22953DQCR has a maximum junction temperature of 150°C. To ensure it doesn't overheat, you should provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device. You should also consider the thermal resistance of the PCB and the device's power dissipation.
The TPS22953DQCR is a high-reliability device, but it's essential to review the device's specifications and certifications (e.g., AEC-Q100) to ensure it meets the requirements of your specific application. You should also consider implementing additional safety features, such as redundancy, error detection, and fault tolerance, to ensure the overall system meets the required safety and reliability standards.
To troubleshoot issues with the TPS22953DQCR, start by reviewing the datasheet and application notes, and checking the device's input and output voltages, currents, and frequencies. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. You may also want to consult with a Texas Instruments application engineer or seek online support resources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22953DQCR Overview

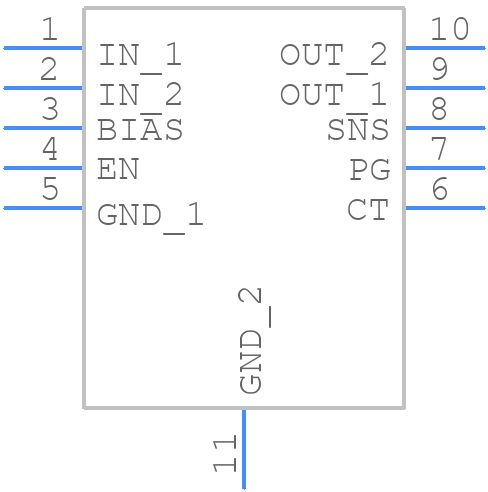

Use the download button to access the TPS22953DQCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
