A good PCB layout for the TPS22953DSQR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency signals.
To ensure proper power-up and configuration, it's recommended to follow a specific power-up sequence, which includes applying the input voltage, waiting for the internal voltage regulator to stabilize, and then applying the enable signal. Additionally, the device should be configured through the I2C interface after power-up.
The TPS22953DSQR has a maximum junction temperature of 150°C. To ensure it doesn't overheat, it's recommended to provide adequate airflow, use a heat sink if necessary, and ensure the device is mounted on a PCB with a good thermal conductivity. Additionally, the device has a built-in thermal shutdown feature that will turn off the device if it overheats.
To troubleshoot issues with the TPS22953DSQR, it's recommended to use a logic analyzer or oscilloscope to monitor the device's signals, such as the enable and fault signals. Additionally, checking the device's registers through the I2C interface can provide valuable information about the device's status and configuration.
The TPS22953DSQR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an ESD-safe environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22953DSQR Overview

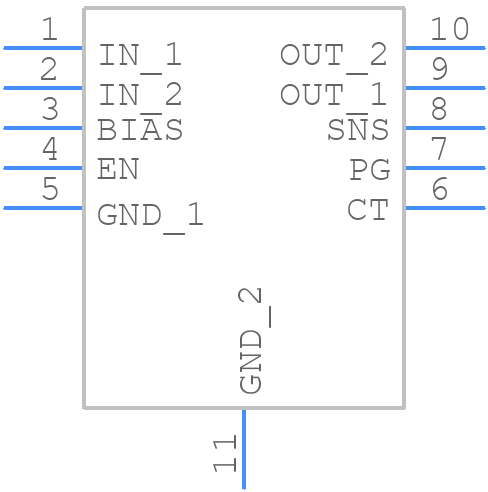

Use the download button to access the TPS22953DSQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
