A good PCB layout for the TPS22964CYZPR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF capacitance on the input and output is recommended. Also, avoid using capacitors with high ESL.
The TPS22964CYZPR can handle input voltages up to 5.5V. However, it's recommended to operate the device within the specified input voltage range of 2.3V to 5.5V for optimal performance and reliability.
The TPS22964CYZPR is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 85°C, consider using a different device or implementing additional thermal management measures.
To troubleshoot issues with the TPS22964CYZPR, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22964CYZPR Overview

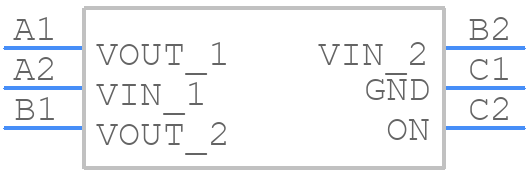

Use the download button to access the TPS22964CYZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
