A good PCB layout for the TPS22965NQWDSGTQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and configuration of the TPS22965NQWDSGTQ1, follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the configuration signals. Also, make sure to follow the recommended configuration timing and voltage levels.
The TPS22965NQWDSGTQ1 has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. Additionally, the device has a maximum junction temperature of 150°C, and the PCB design should ensure good airflow and minimal thermal resistance to prevent overheating.
To troubleshoot issues with the TPS22965NQWDSGTQ1, start by checking the input voltage, enable signal, and configuration signals. Verify that the device is properly powered up and configured. Use an oscilloscope to check the output voltage and current. If issues persist, consult the datasheet and application notes for troubleshooting guides and FAQs.
To minimize EMI and EMC issues with the TPS22965NQWDSGTQ1, use a shielded enclosure, keep the device and associated components away from antennas and other EMI-sensitive components, and use EMI filters or shielding on the input and output lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing trace lengths.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22965NQWDSGTQ1 Overview

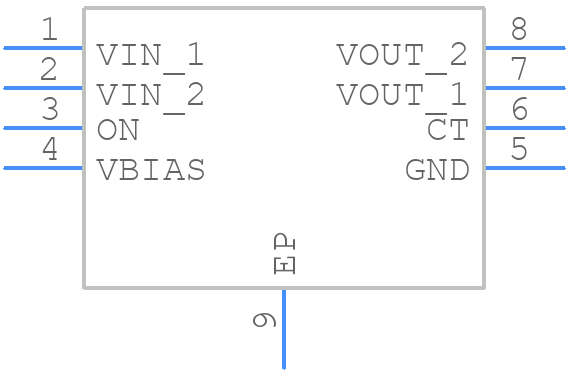

Use the download button to access the TPS22965NQWDSGTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
