A good PCB layout for the TPS22966TDPURQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Texas Instruments provides a recommended PCB layout in the datasheet and application notes.
To ensure proper power-up and configuration, follow the recommended power-up sequence in the datasheet, which involves applying the input voltage, then the enable signal, and finally the configuration signals. Also, make sure to meet the recommended timing requirements for the enable and configuration signals.
The TPS22966TDPURQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, follow the recommended thermal design guidelines in the datasheet, including using a heat sink if necessary, and ensuring good airflow around the device. Also, consider the thermal resistance of the package and the PCB.
To troubleshoot issues with the TPS22966TDPURQ1, start by checking the input voltage, enable signal, and configuration signals. Verify that the device is properly powered up and configured. Use an oscilloscope to monitor the output voltage and current. Check for any signs of overheating or electrical overstress. Consult the datasheet and application notes for troubleshooting guidelines.
The TPS22966TDPURQ1 is a high-reliability device, but it's essential to follow the recommended design and layout guidelines to ensure reliable operation. Additionally, consult the datasheet and application notes for information on fault detection and protection features. It's also recommended to consult with a Texas Instruments representative or a qualified engineer to ensure the device meets the specific requirements of your application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22966TDPURQ1 Overview

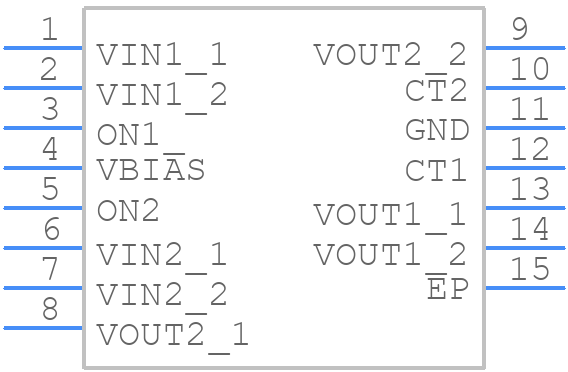

Use the download button to access the TPS22966TDPURQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
