A good PCB layout for the TPS22968NQDMGRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Texas Instruments provides a recommended PCB layout in the datasheet and application notes.
To ensure proper power-up and configuration of the TPS22968NQDMGRQ1, follow the recommended power-up sequence, configure the EN pin correctly, and ensure the input voltage is within the recommended range. Also, refer to the datasheet for specific configuration and power-up requirements.
The TPS22968NQDMGRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range, use a heat sink if necessary, and follow proper thermal design practices to minimize thermal resistance.
To troubleshoot issues with the TPS22968NQDMGRQ1, start by checking the input voltage, output voltage, and current. Verify the device is properly configured and powered up. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for troubleshooting guidance.
The TPS22968NQDMGRQ1 has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, handle the device by the body, and avoid touching the pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22968NQDMGRQ1 Overview

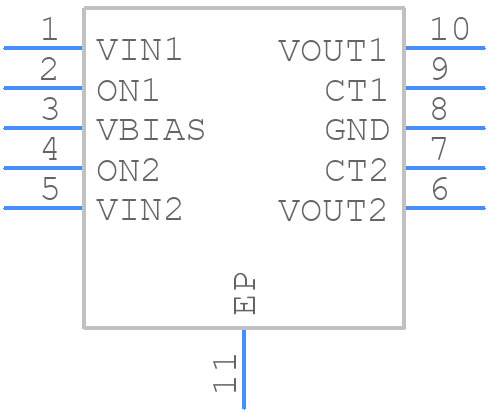

Use the download button to access the TPS22968NQDMGRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
