A good PCB layout for the TPS22975NDSGT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and configuration of the TPS22975NDSGT, follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the output voltage. Also, make sure to configure the device according to the datasheet recommendations for the desired output voltage and current limit.
The TPS22975NDSGT has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. Additionally, the device has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. It's recommended to keep the device within a safe operating temperature range to prevent overheating.
To troubleshoot issues with the TPS22975NDSGT, start by checking the input voltage, output voltage, and enable signal. Verify that the device is properly configured and powered up. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any unusual voltage or current waveforms.
To minimize EMI and EMC issues with the TPS22975NDSGT, use a shielded enclosure, keep the device and associated components away from sensitive circuits, and use a common-mode choke or ferrite bead to filter the output voltage. Additionally, follow good PCB layout practices, such as using a solid ground plane and minimizing trace lengths.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22975NDSGT Overview

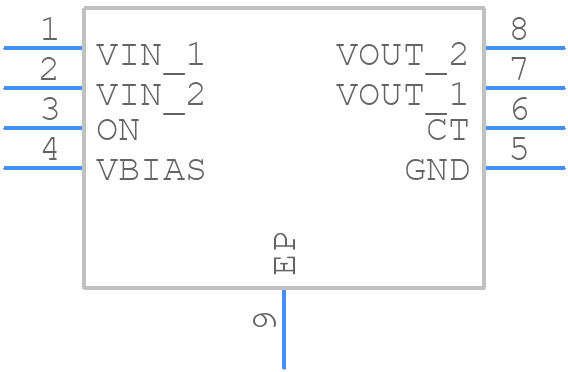

Use the download button to access the TPS22975NDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
