TPS22976NDPUT - Texas Instruments

Description: 5.5V, 6A, 14mΩ, dual load switch with adj. rise time & optional QOD

Download TPS22976NDPUT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

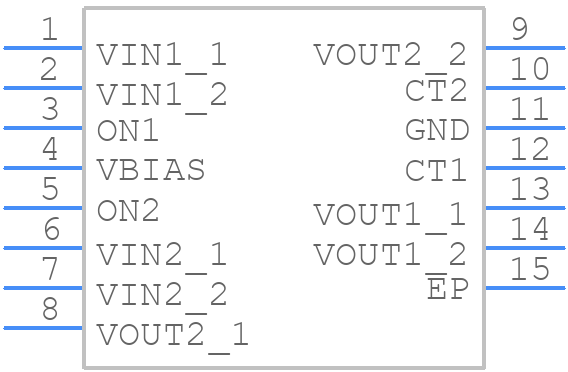

Symbol
TPS22976NDPUT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22976NDPUT - Texas Instruments PCB footprint - Other - Other - TPS22976NDPUT-2
click to zoom
3D Models
TPS22976NDPUT - Texas Instruments - 3D model - Other - TPS22976NDPUT-2
click to zoom

TPS22976NDPUT Details

  • Manufacturer Part Number:

    TPS22976NDPUT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    THERMAL SHUTDOWN:160C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.7 V

  • Input Voltage-Min:

    0.6 V

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max (Vsup):

    5.7 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS22976NDPUT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS22976NDPUT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with additional capacitors if the device is far from the power source.
  • The TPS22976NDPUT can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
  • The TPS22976NDPUT is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. It's also important to ensure good thermal design and heat sinking to prevent overheating.
