TPS22986YFPR - Texas Instruments

Description: Thunderbolt™ Cable Power Mux (Also supports Thunderbolt 2)

Download TPS22986YFPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

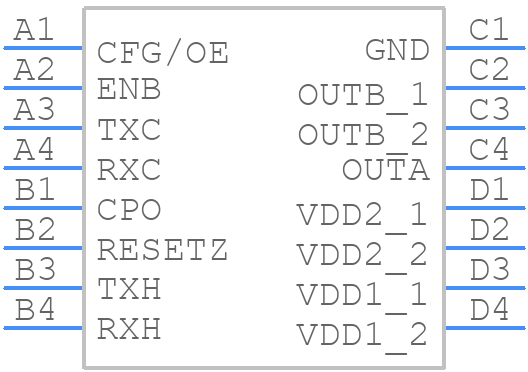

Symbol
TPS22986YFPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22986YFPR - Texas Instruments PCB footprint - BGA - BGA - yfp
click to zoom
3D Models
TPS22986YFPR - Texas Instruments - 3D model - BGA - yfp
click to zoom

TPS22986YFPR Details

  • Manufacturer Part Number:

    TPS22986YFPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    19.8 V

  • Input Voltage-Min:

    2.8 V

  • JESD-30 Code:

    S-XBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.576 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    19.8 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.576 mm

TPS22986YFPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, and using a solid ground plane to reduce noise and EMI.
  • The TPS22986YFPR has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if the device will be operating at high currents or in high-temperature environments.
  • While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • Start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly configured and that the input and output capacitors are properly sized and placed. Use an oscilloscope to check for oscillations or other anomalies on the input and output lines.
  • Yes, the TPS22986YFPR is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the required specifications and standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS22986YFPR Overview

Use the download button to access the TPS22986YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
