A good PCB layout for the TPS22990NDMLR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-ESR output capacitor.
The TPS22990NDMLR can handle input voltages up to 5.5V, but it's recommended to operate it within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
The TPS22990NDMLR is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability. It's also important to ensure good thermal design and heat sinking to prevent overheating.
To troubleshoot issues with the TPS22990NDMLR, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and of high quality. Check for any signs of overheating, and ensure that the device is properly soldered and connected to the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22990NDMLR Overview

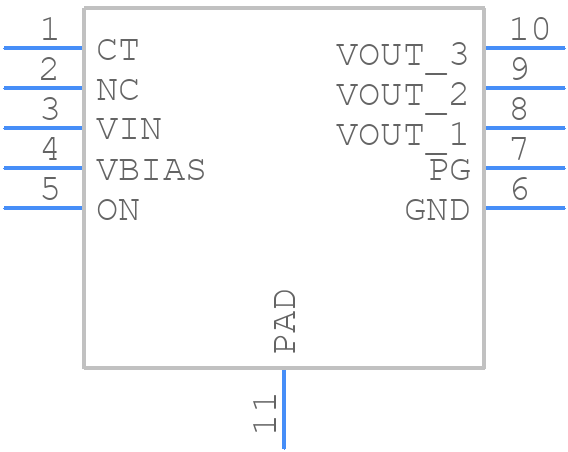

Use the download button to access the TPS22990NDMLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
