A good PCB layout for the TPS22993RLWR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and configuration of the TPS22993RLWR, follow these steps: 1) Apply power to the device, 2) Wait for the internal voltage regulator to stabilize (typically 10ms), 3) Configure the device using the I2C interface, and 4) Verify the device is functioning correctly by monitoring the output voltage and current.
The TPS22993RLWR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. Additionally, the device has a thermal shutdown feature that will turn off the device if the junction temperature exceeds 150°C. It's recommended to keep the device's operating temperature below 125°C for optimal performance and reliability.
To troubleshoot issues with the TPS22993RLWR, follow these steps: 1) Verify the power supply voltage and current, 2) Check the I2C communication and configuration, 3) Verify the output voltage and current, 4) Check for thermal issues, and 5) Consult the datasheet and application notes for specific troubleshooting guidelines.
The TPS22993RLWR has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Additionally, it's recommended to use ESD protection devices on the input and output lines to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22993RLWR Overview

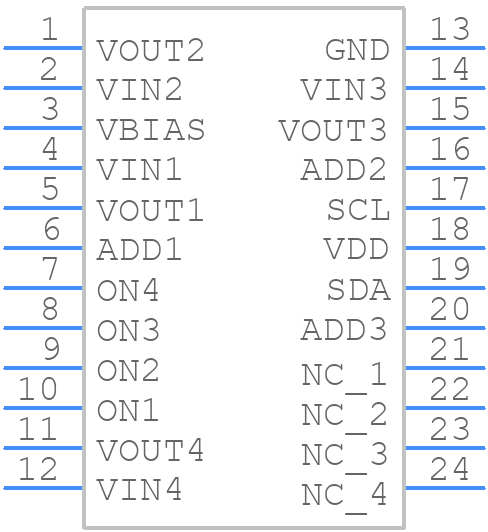

Use the download button to access the TPS22993RLWR schematic symbol, PCB footprint, and 3D model.
