Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the application note SLVA883. It's essential to follow these guidelines to minimize parasitic inductance and ensure proper operation.
The input capacitor value depends on the input voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. TI's Webench Power Designer tool can help with capacitor selection.
The TPS22994RUKT is rated for a maximum output current of 4A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the device's thermal performance and power dissipation calculations to ensure reliable operation.
The TPS22994RUKT has a built-in overcurrent protection feature. To implement OCP, connect a sense resistor (Rs) between the output and GND, and set the OCP threshold voltage (Vocp) using an external resistor divider. The device will limit the output current when the sense voltage (Vrs) exceeds the OCP threshold voltage.
The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to implement power sequencing, shutdown, or low-power modes in your system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22994RUKT Overview

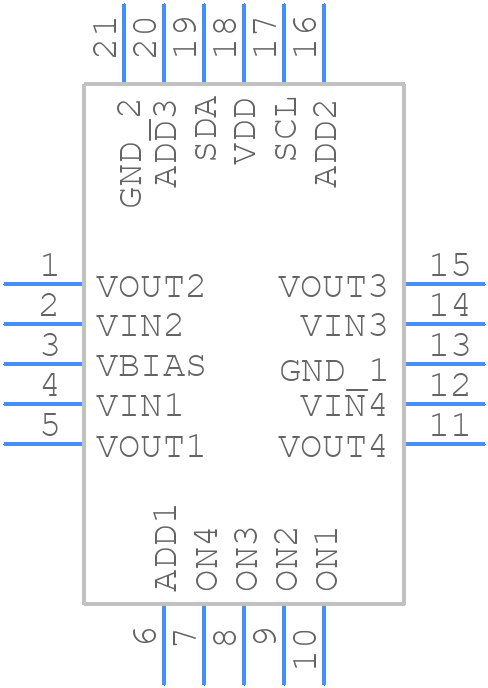

Use the download button to access the TPS22994RUKT schematic symbol, PCB footprint, and 3D model.
