The maximum input voltage that can be applied to the TPS2311IPWR is 5.5V, as specified in the absolute maximum ratings section of the datasheet. Exceeding this voltage can damage the device.
To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines provided in the datasheet, including setting the EN pin high, configuring the VOUT pin, and ensuring proper input voltage and decoupling.
The minimum input capacitance required for stable operation is 1uF, as specified in the datasheet. However, it's recommended to use a higher value, such as 4.7uF or 10uF, to ensure stable operation and minimize output voltage ripple.
The TPS2311IPWR is rated for operation up to 85°C, but it's recommended to derate the output current and input voltage to ensure reliable operation at high temperatures. Consult the datasheet and thermal design guidelines for more information.
To troubleshoot issues with the TPS2311IPWR, follow a systematic approach, including checking the input voltage, output voltage, and current, as well as verifying the configuration and layout of the device. Consult the datasheet and application notes for troubleshooting guidelines and tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2311IPWR Overview

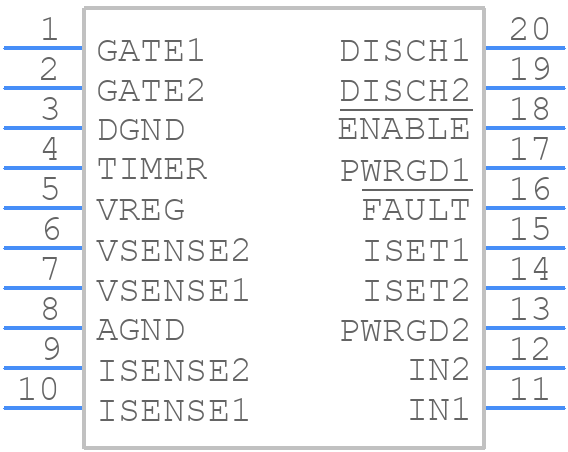

Use the download button to access the TPS2311IPWR schematic symbol, PCB footprint, and 3D model.
