Texas Instruments provides a recommended PCB layout in the TPS2321IPW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and achieve optimal performance.
The selection of input capacitors depends on the input voltage, current, and frequency. A general rule of thumb is to choose capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value that ensures the desired ripple voltage. TI recommends using low-ESR capacitors with a capacitance value of 10uF to 22uF.
The TPS2321IPW is capable of delivering up to 2A of output current. However, the actual output current capability depends on the input voltage, output voltage, and ambient temperature. It's essential to check the device's thermal performance and ensure that it can handle the required output current without overheating.
The TPS2321IPW has a built-in overcurrent protection feature that limits the output current to a maximum of 3.5A. To implement overcurrent protection, connect a sense resistor (Rs) between the output pin and the GND pin. The device will detect the voltage drop across Rs and limit the output current accordingly.
The EN (enable) pin is used to enable or disable the TPS2321IPW. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2321IPW Overview

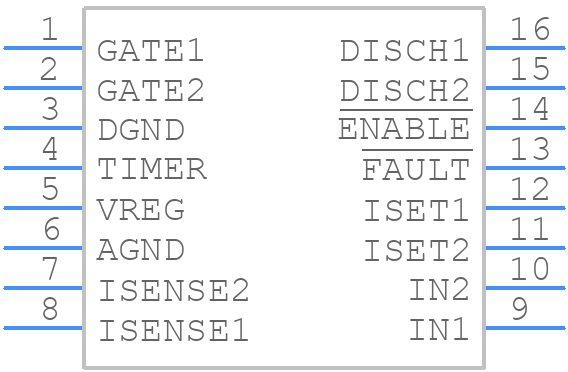

Use the download button to access the TPS2321IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
