TPS2330ID - Texas Instruments

Description: 3-13V Single Hot-Swap IC w/ Power Good Report, Act-Low Enable

Download TPS2330ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

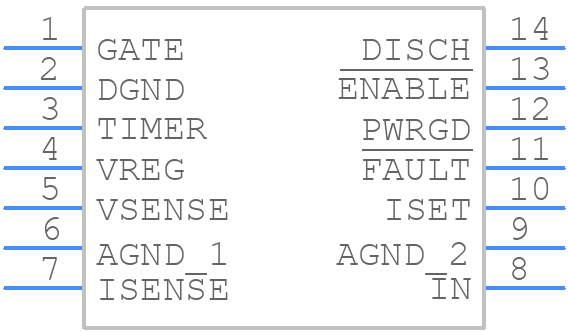

TPS2330ID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2330ID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
TPS2330ID - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

TPS2330ID Details

  • Manufacturer Part Number:

    TPS2330ID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    13 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    13 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS2330ID Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the TPS2330ID is 3A, but it's recommended to limit the current to 2A for reliable operation and to prevent overheating.
  • To ensure proper power-on and power-off, make sure to follow the recommended power-up and power-down sequences in the datasheet, and use a suitable capacitor value for the EN pin to prevent unwanted power-on events.
  • The EN (enable) pin is used to turn the device on and off. It's an active-high input, meaning it needs to be pulled high to enable the device. Connect a pull-up resistor to the EN pin and tie it to a logic signal or a voltage source to control the device's power state.
  • Choose an inductor value based on the desired output voltage, input voltage, and switching frequency. A higher inductor value can reduce ripple current but may increase the device's footprint. Consult the datasheet and application notes for guidance on inductor selection.
  • Follow the recommended PCB layout guidelines in the datasheet and application notes to minimize noise, reduce electromagnetic interference (EMI), and ensure proper thermal performance. Keep the switching node (SW pin) away from sensitive analog signals and use a solid ground plane to reduce noise.
