Texas Instruments provides a recommended PCB layout in the TPS2331IDR datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to minimize electromagnetic interference (EMI), reduce noise, and ensure proper thermal dissipation.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the TPS2331IDR.
The TPS2331IDR has an operating junction temperature range of -40°C to 125°C. However, the maximum ambient temperature depends on the specific application and the device's power dissipation. As a general guideline, the ambient temperature should be kept below 85°C to ensure reliable operation and prevent thermal shutdown.
Yes, the TPS2331IDR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a high-reliability process. However, it is essential to review the device's qualification data and perform thorough testing to ensure it meets the specific requirements of your application.
To troubleshoot issues with the TPS2331IDR, start by reviewing the device's datasheet and application notes. Check the PCB layout, component selection, and soldering quality. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult Texas Instruments' technical support resources, such as the E2E forum or technical documentation, for guidance on specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2331IDR Overview

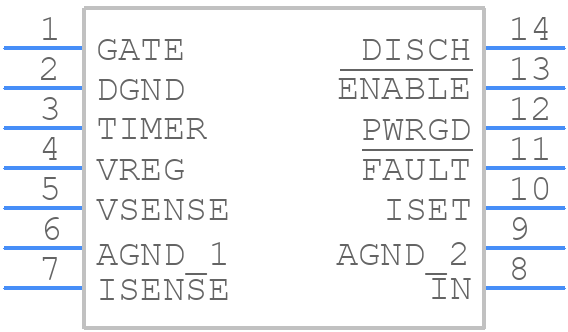

Use the download button to access the TPS2331IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
