Texas Instruments provides a recommended PCB layout in the TPS2350DR datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, especially for high-frequency and high-power applications.
The sense resistor value depends on the desired current limit and the input voltage. A higher sense resistor value will result in a lower current limit, while a lower sense resistor value will result in a higher current limit. Texas Instruments provides a formula in the datasheet to calculate the sense resistor value based on the desired current limit and input voltage.
The EN (enable) pin is used to enable or disable the TPS2350DR. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. This pin can be used to implement power sequencing, fault detection, and other power management functions. The EN pin should be connected to a logic-level signal source, such as a microcontroller or a logic gate.
The TPS2350DR has built-in OVP and UVP features. The OVP threshold is set to 12.5V, and the UVP threshold is set to 4.5V. When the input voltage exceeds the OVP threshold or falls below the UVP threshold, the device will shut down to protect the load. The OVP and UVP thresholds can be adjusted using external resistors and capacitors.
The TPS2350DR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is essential to ensure that the device operates within the recommended temperature range to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2350DR Overview

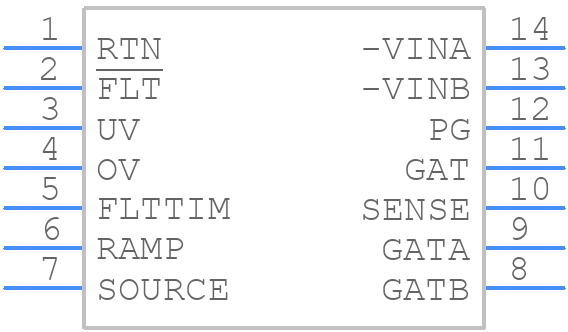

Use the download button to access the TPS2350DR schematic symbol, PCB footprint, and 3D model.
