TPS23525PWR - Texas Instruments

Description: -10-V to -80-V hot swap controller with dual current limit and dual Oring

Download TPS23525PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

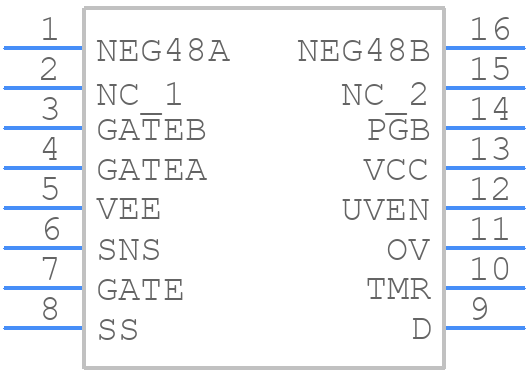

TPS23525PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS23525PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
TPS23525PWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

TPS23525PWR Details

  • Manufacturer Part Number:

    TPS23525PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    -10 V

  • Input Voltage-Min:

    -80 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1.1 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS23525PWR Frequently Asked Questions (FAQs)

  • The maximum current rating for the TPS23525PWR is 2.5A per channel, with a total current limit of 5A for all channels combined.
  • To configure the TPS23525PWR for hot-swap applications, connect the HS pin to a 10kΩ pull-up resistor to VCC, and ensure the EN pin is tied to a logic high signal. This enables the hot-swap feature, allowing the device to detect and respond to insertion and removal of a load.
  • The FAULT pin is an open-drain output that indicates an overcurrent, undervoltage, or overvoltage fault condition. Connect the FAULT pin to a microcontroller or other logic circuit to monitor and respond to fault events. The FAULT pin is active low, meaning it will be pulled low when a fault occurs.
  • Yes, the TPS23525PWR can operate with a supply voltage as low as 2.7V and as high as 5.5V. However, the device's performance and functionality may be affected at lower supply voltages. Consult the datasheet for specific details on voltage and current limitations.
  • The TPS23525PWR has built-in overcurrent protection. To implement it, connect the OCP pin to a resistor (R_OCP) that sets the overcurrent threshold. The device will limit the output current to the set threshold when an overcurrent condition is detected.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS23525PWR Overview

Use the download button to access the TPS23525PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits
