TPS2359RHHR - Texas Instruments

Description: Full Featured Dual-Slot AdvancedMC™ Controller

Download TPS2359RHHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

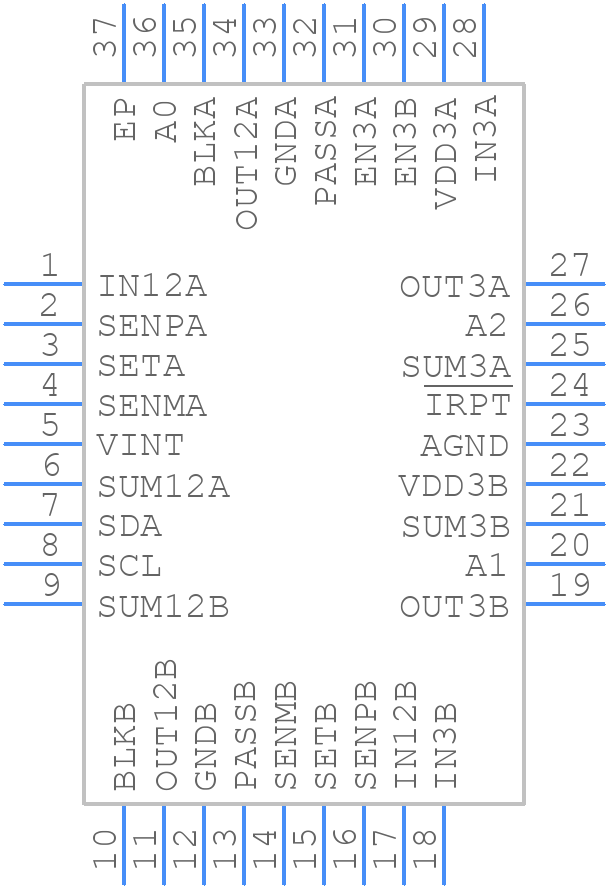

TPS2359RHHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2359RHHR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHH0036B
click to zoom
3D Models
TPS2359RHHR - Texas Instruments - 3D model - Quad Flat No-Lead - RHH0036B
click to zoom

TPS2359RHHR Details

  • Manufacturer Part Number:

    TPS2359RHHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    8.5 V

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    4 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +10.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TPS2359RHHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The input capacitor value depends on the input voltage, output voltage, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. Consult the datasheet and application notes for more specific guidance.
  • The maximum output current is 3.5A, but it's essential to consider the thermal limitations and power dissipation of the device. Make sure to check the thermal derating curves and ensure the device is properly heatsinked to maintain a safe operating temperature.
  • The TPS2359RHHR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure you follow the recommended operating conditions and consider the thermal derating curves to ensure safe operation.
  • The TPS2359RHHR has a built-in overcurrent protection feature that limits the output current to 4.5A. You can also implement external overcurrent protection using a sense resistor and a comparator or a dedicated overcurrent protection IC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2359RHHR Overview

Use the download button to access the TPS2359RHHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits
