TPS2363PFBR - Texas Instruments

Description: PCIExpress Server Dual Slot Hot Plug Controller

Download TPS2363PFBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

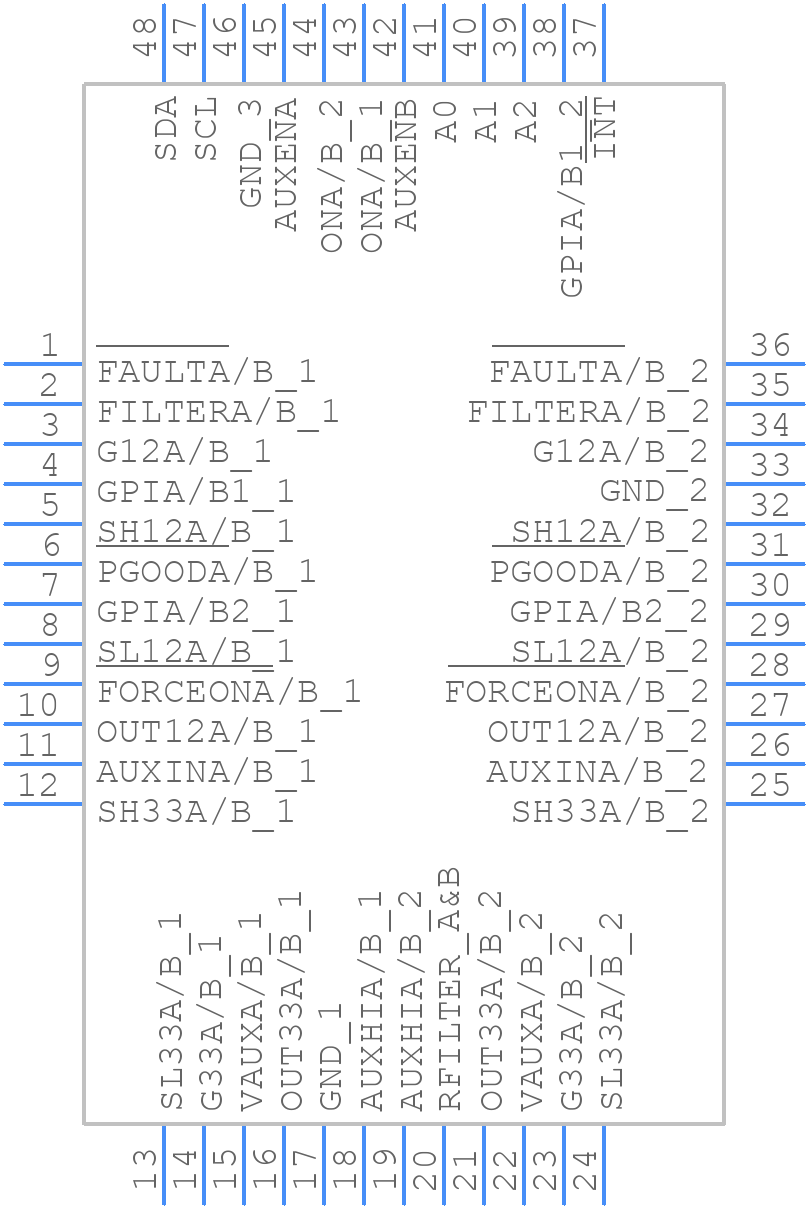

TPS2363PFBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2363PFBR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48) HEIGHT 1.2
click to zoom
3D Models
TPS2363PFBR - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48) HEIGHT 1.2
click to zoom

TPS2363PFBR Details

  • Manufacturer Part Number:

    TPS2363PFBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS2363PFBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS2363PFBR involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide to minimize inductance and resistance. Additionally, it's recommended to use a common ground point for the input and output returns to reduce noise and improve stability.
  • The input capacitor should be chosen based on the input voltage ripple requirement, output current, and operating frequency. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the input voltage. X5R or X7R ceramic capacitors are good options due to their low ESR and high reliability.
  • The TPS2363PFBR can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
  • The TPS2363PFBR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. A lower resistor value sets a higher overcurrent threshold, and vice versa.
  • The TPS2363PFBR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and power dissipation at high temperatures to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2363PFBR Overview

Use the download button to access the TPS2363PFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits
