A good PCB layout for the TPS2372-4RGWR involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to use a common mode choke and a TVS diode for ESD protection.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Also, ensure that the device is properly configured by setting the correct registers and pins.
The TPS2372-4RGWR has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pads. Also, monitor the device's temperature using the thermal monitoring pin and take corrective action if it exceeds the recommended temperature range.
To troubleshoot issues with the TPS2372-4RGWR, start by checking the power supply and input voltage, then verify the device's configuration and register settings. Use an oscilloscope to check the voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the TPS2372-4RGWR is a high-frequency device and requires proper EMI and EMC design considerations. Use a shielded enclosure, keep the device away from other high-frequency components, and follow good PCB layout practices to minimize EMI and EMC issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2372-4RGWR Overview

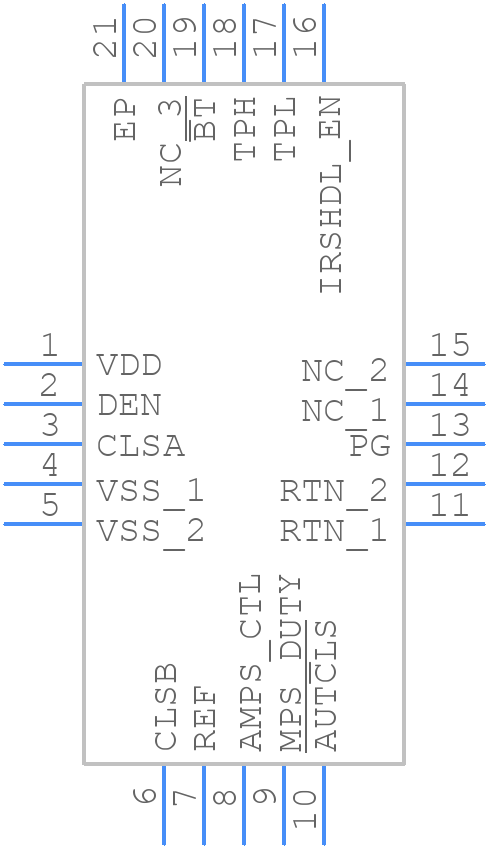

Use the download button to access the TPS2372-4RGWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
