A good PCB layout for the TPS23734RMTR involves placing the device close to the PoE input, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
The TPS23734RMTR requires a specific power-up sequence to ensure proper configuration. The device should be powered up with a valid input voltage, followed by a reset signal, and then the configuration pins should be set according to the application requirements.
The TPS23734RMTR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a good thermal conductivity, and the ambient temperature should be kept below 85°C. Additionally, the device should be operated within the recommended power dissipation limits.
To troubleshoot issues with the TPS23734RMTR, start by verifying the power supply and input voltage, then check the configuration pins and reset signal. Use an oscilloscope to monitor the device's behavior and identify any anomalies. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the TPS23734RMTR can be used in non-PoE applications, but it requires external circuitry to provide the necessary voltage and current. The device's input voltage range and current limits should be considered, and the application should ensure the device is operated within its recommended specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23734RMTR Overview

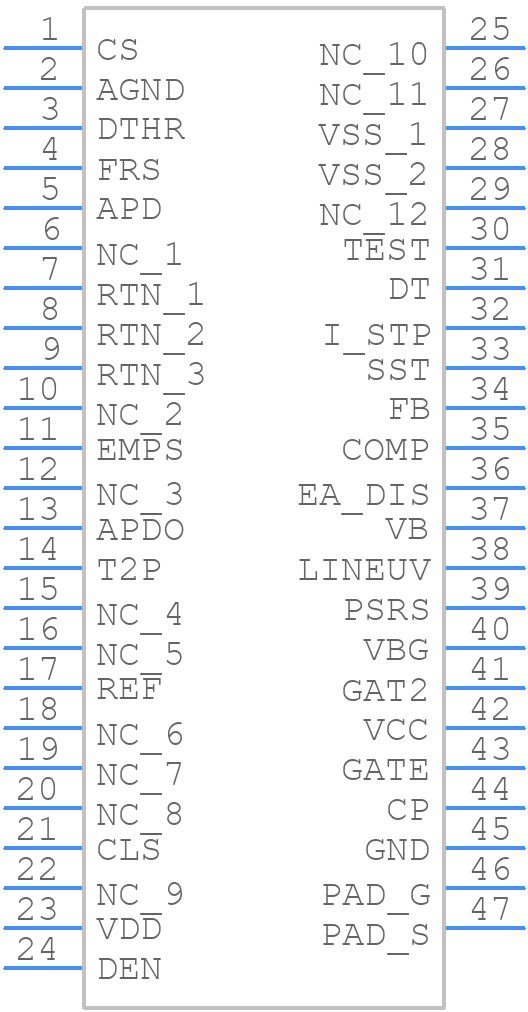

Use the download button to access the TPS23734RMTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
