SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
3 mA
Supply Voltage-Max (Vsup):
57 V
Supply Voltage-Nom (Vsup):
48 V
Surface Mount:
YES
Switching Frequency-Max:
276 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+32V
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS23751PWP Frequently Asked Questions (FAQs)
A good PCB layout for the TPS23751PWP involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to use a common mode choke and a TVS diode for ESD protection.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Also, ensure that the device is properly configured through the I2C interface.
The TPS23751PWP has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from other heat sources.
To troubleshoot issues with the TPS23751PWP, start by checking the input voltage, enable signal, and clock signal. Verify that the device is properly configured through the I2C interface. Use an oscilloscope to monitor the signals and check for any anomalies. Also, ensure that the PCB layout is correct and that there are no issues with the power supply or clock source.
Yes, the TPS23751PWP can be used in non-PoE applications, but it's essential to ensure that the input voltage and current requirements are met. Additionally, the device's detection and classification features may not be utilized in non-PoE applications, and the I2C interface may need to be reconfigured.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23751PWP Overview

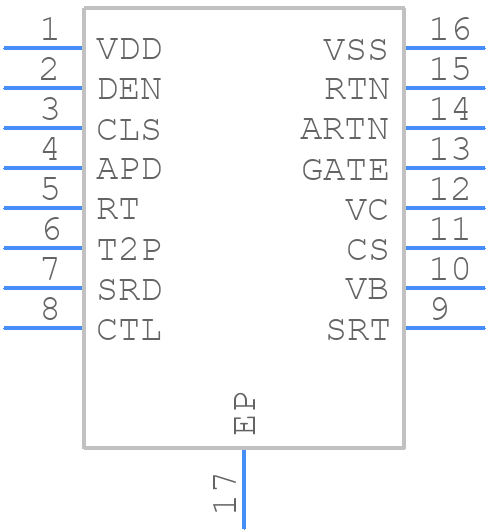

Use the download button to access the TPS23751PWP schematic symbol, PCB footprint, and 3D model.
