A good PCB layout for the TPS23753APW involves placing the device close to the PoE input, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
The TPS23753APW requires a specific power-up sequence to ensure proper configuration. The device should be powered up with a valid input voltage, followed by a valid clock signal, and then the EN pin should be asserted high. Refer to the datasheet for the recommended power-up sequence.
The TPS23753APW has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high currents.
To troubleshoot issues with the TPS23753APW, start by verifying the input voltage, clock signal, and EN pin configuration. Check for proper PCB layout and thermal considerations. Use an oscilloscope to monitor the device's output and input signals, and consult the datasheet and application notes for troubleshooting guides.
Yes, the TPS23753APW can be used in non-PoE applications, but it requires external circuitry to provide the necessary input voltage and clock signal. Ensure the device is properly configured and powered, and consider the thermal and layout considerations mentioned in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23753APW Overview

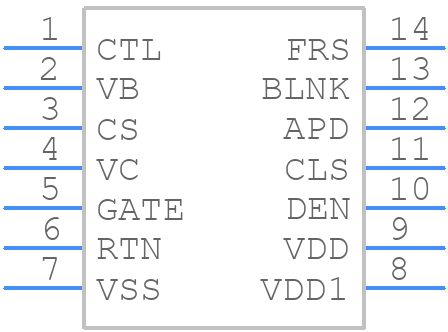

Use the download button to access the TPS23753APW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
