TPS23755RJJR - Texas Instruments

Description: Power Switch ICs - POE / LAN IEEE 802.3at PoE PD with no-opto flyback DC-DC controller 23-VSON -40 to 125

Download TPS23755RJJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

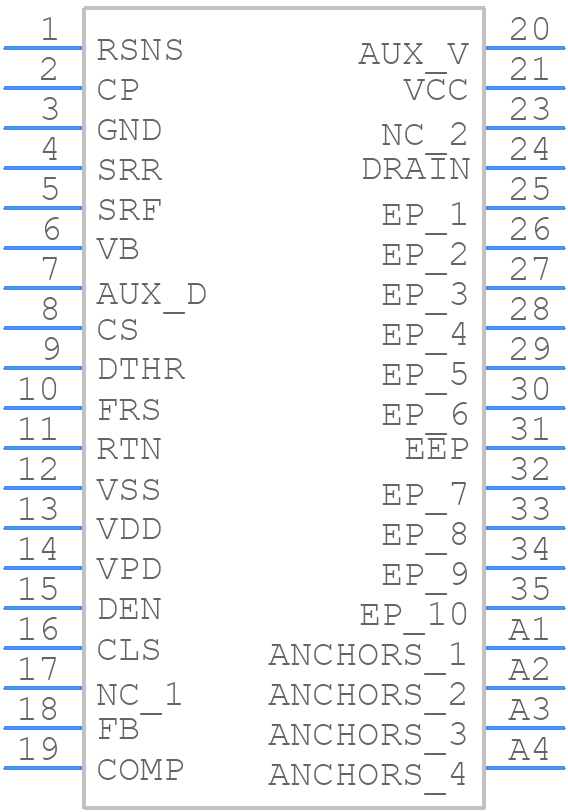

TPS23755RJJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS23755RJJR - Texas Instruments PCB footprint - Other - Other - RJJ0023B
click to zoom
3D Models
TPS23755RJJR - Texas Instruments - 3D model - Other - RJJ0023B
click to zoom

TPS23755RJJR Details

  • Manufacturer Part Number:

    TPS23755RJJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-08-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER
