Texas Instruments provides a recommended PCB layout in the TPS2375DRG4 datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a layout guide for power modules.
The input capacitor selection depends on the input voltage, output current, and operating frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. The datasheet provides more detailed guidance on input capacitor selection.
The TPS2375DRG4 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Yes, the TPS2375DRG4 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments. However, it's essential to review the device's qualification data and perform thorough testing to ensure it meets the specific requirements of your application.
Texas Instruments provides a troubleshooting guide for the TPS2375DRG4, which includes a step-by-step approach to identifying and resolving common issues. Additionally, the TI website offers a range of resources, including application notes, FAQs, and technical support forums, to help engineers troubleshoot and optimize their designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2375DRG4 Overview

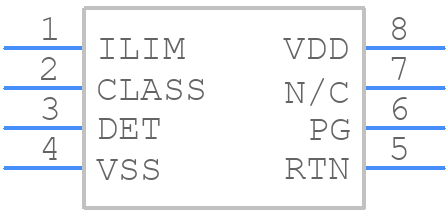

Use the download button to access the TPS2375DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
