The maximum power dissipation of the TPS2375PWR is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
To ensure proper power-on and power-off sequencing, the EN pin should be driven high to turn on the device, and driven low to turn off the device. Additionally, the input voltage should be applied before the EN pin is driven high, and the EN pin should be driven low before the input voltage is removed.
For optimal performance, it is recommended to follow the layout and placement guidelines outlined in the datasheet, including placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. Additionally, the device should be placed on a multi-layer PCB with a solid ground plane to minimize electromagnetic interference (EMI).
The TPS2375PWR has a built-in overcurrent protection feature that limits the output current to a maximum of 2.5A. If an overcurrent condition is detected, the device will automatically shut down and restart once the fault is removed.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 6.3V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2375PWR Overview

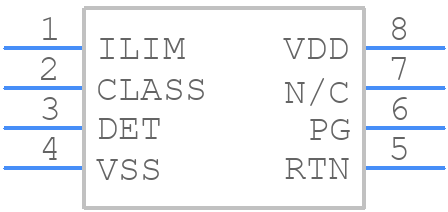

Use the download button to access the TPS2375PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
