TPS2376DDAR-H - Texas Instruments

Description: Power Switch ICs - POE / LAN IEEE 802.3af PoE Hi Pwr PD CONTROLLER

Download TPS2376DDAR-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

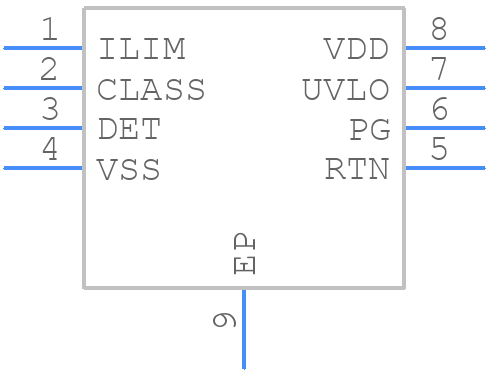

TPS2376DDAR-H - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2376DDAR-H - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)_1
click to zoom
3D Models
TPS2376DDAR-H - Texas Instruments - 3D model - Small Outline Packages - DDA (R-PDSO-G8)_1
click to zoom

TPS2376DDAR-H Details

  • Manufacturer Part Number:

    TPS2376DDAR-H

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • Input Voltage-Max:

    57 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.68 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS2376DDAR-H Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS2376DDAR-H involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of at least 10uF. The capacitor should be rated for the maximum input voltage and should be placed as close to the VIN pin as possible.
  • The maximum ambient temperature range for the TPS2376DDAR-H is -40°C to 85°C. However, the device can operate at a higher temperature range with derating.
  • Proper thermal management involves providing a good thermal path from the device to a heat sink or a metal plate. The device should be mounted on a PCB with a good thermal conductivity, and a thermal interface material should be used to fill any air gaps.
  • The recommended input voltage range for the TPS2376DDAR-H is 7V to 28V. However, the device can operate with an input voltage as low as 5V with reduced performance.
