Texas Instruments provides a recommended PCB layout in the TPS2376PW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low EMI, and high reliability.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the input current and frequency.
The maximum cable length supported by the TPS2376PW depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends keeping the cable length as short as possible to minimize signal attenuation and reflections. However, cable lengths up to 100 meters or more can be supported with proper cable selection and termination.
The TPS2376PW has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values in the voltage divider network. Additionally, an external OVP circuit can be implemented using a voltage comparator and a switch to disconnect the input power in case of an overvoltage condition.
The power dissipation of the TPS2376PW depends on the input voltage, output current, and switching frequency. The datasheet provides a power dissipation calculation formula and a thermal model to estimate the junction temperature. To manage heat generation, use a heat sink, ensure good airflow, and follow proper PCB layout and thermal design guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2376PW Overview

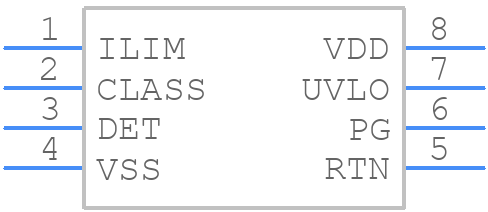

Use the download button to access the TPS2376PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
