Texas Instruments provides a recommended PCB layout in the TPS2376PWR datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow this layout to ensure proper operation and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and ripple requirements. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the input ripple voltage is within the recommended range (typically 100-200 mV).
The EN (enable) pin is used to turn the device on or off. When the EN pin is high (logic level), the device is enabled, and when it is low (logic level), the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
The TPS2376PWR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure that the thermal plane is connected to a heat sink or a metal plate to improve heat dissipation. Additionally, follow the recommended PCB layout and component placement to minimize thermal resistance.
The TPS2376PWR has a maximum output current capability of 3.6 A. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. It is essential to ensure that the device operates within the recommended operating conditions to avoid overheating or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2376PWR Overview

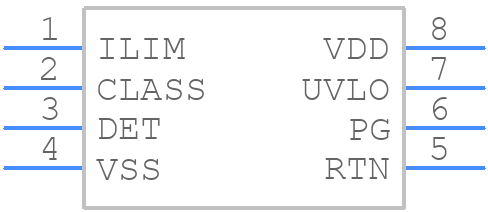

Use the download button to access the TPS2376PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
