A good PCB layout for the TPS23770PWPR involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to use a common mode choke and a TVS diode for ESD protection.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Also, ensure that the device is properly configured through the I2C interface.
Thermal management is crucial for the TPS23770PWPR. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads. Also, consider the thermal resistance of the PCB and the device's power dissipation to prevent overheating.
To troubleshoot issues with the TPS23770PWPR, start by checking the power supply and input voltage, then verify the device's configuration and register settings. Use an oscilloscope to monitor the device's signals and check for any signs of electrical overstress or ESD damage.
When using the TPS23770PWPR in a high-reliability or safety-critical application, ensure that the device is properly derated, and consider using redundant or fault-tolerant designs. Also, follow relevant industry standards and guidelines, such as IEC 61508 or DO-254, to ensure the device meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23770PWPR Overview

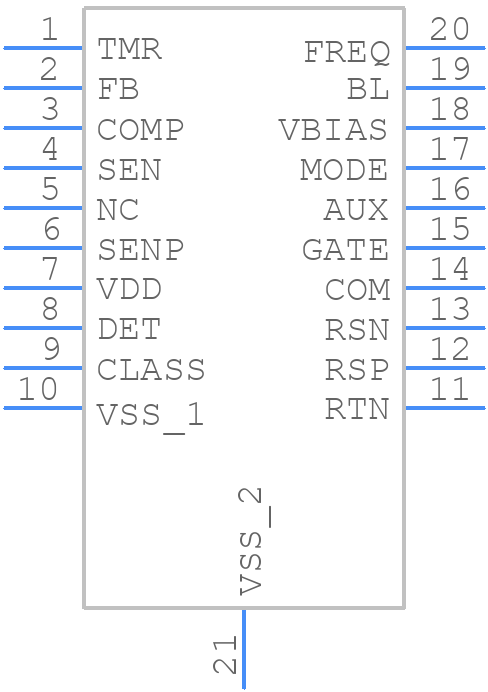

Use the download button to access the TPS23770PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
