Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and layer changes.
The input capacitor should be chosen based on the input voltage ripple requirement, output voltage, and switching frequency. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the input voltage.
The TPS2377D-1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
Yes, the TPS2377D-1 is qualified for automotive and high-reliability applications, but it's essential to follow the specific requirements and guidelines for these applications, such as AEC-Q100 for automotive or MIL-STD-883 for military applications.
To troubleshoot issues with the TPS2377D-1, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are correctly sized. Use an oscilloscope to check for voltage ripple, ringing, or other anomalies. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Texas Instruments support.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS2377D-1 Overview

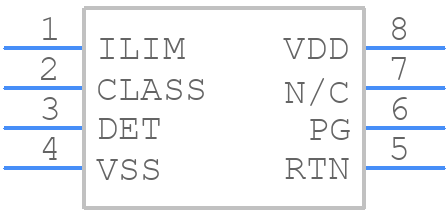

Use the download button to access the TPS2377D-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
