Texas Instruments provides a recommended PCB layout in the TPS2377PW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, especially for high-frequency and high-power applications.
The input capacitor selection depends on the input voltage, current, and frequency. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the TPS2377PW.
The TPS2377PW has a maximum ambient temperature rating of 85°C. However, the device's junction temperature (TJ) should not exceed 150°C. It is essential to ensure proper thermal management, such as using a heat sink or thermal pad, to keep the junction temperature within the specified range.
Yes, the TPS2377PW is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it is essential to review the device's qualification data and perform additional testing to ensure it meets the specific requirements of your application.
Texas Instruments provides a troubleshooting guide for the TPS2377PW in the datasheet, which includes a fault tree analysis and debugging techniques. Additionally, you can use oscilloscopes and other diagnostic tools to monitor the device's input and output voltages, currents, and control signals to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2377PW Overview

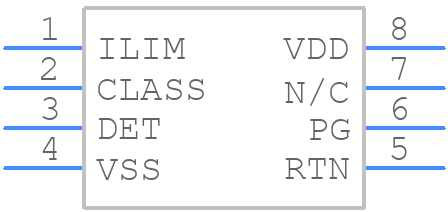

Use the download button to access the TPS2377PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
