TPS2392PW - Texas Instruments

Description: Full Featured -48V Hot Swap Power Manager, Industrial Temp.

Download TPS2392PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

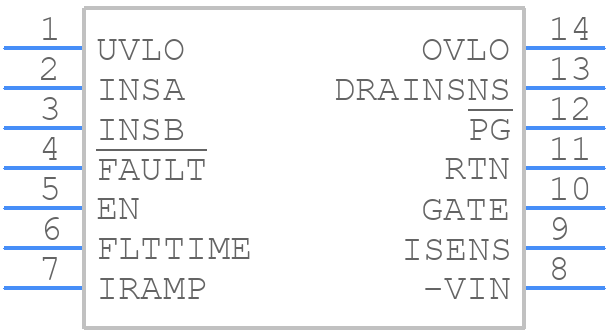

TPS2392PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2392PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TPS2392PW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TPS2392PW Details

  • Manufacturer Part Number:

    TPS2392PW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    -20 V TO -80 V WIDE INPUT SUPPLY RANGE

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -48 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    3 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS2392PW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS2392PW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to minimize electromagnetic interference (EMI), reduce thermal resistance, and ensure reliable operation.
  • The sense resistor value depends on the current sensing range and the desired accuracy. A smaller sense resistor value provides higher accuracy but increases the power loss, while a larger value reduces power loss but decreases accuracy. Texas Instruments provides a sense resistor selection guide in the datasheet to help engineers choose the optimal value for their application.
  • The TPS2392PW has an operating temperature range of -40°C to 125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It is essential to consider the operating temperature range and thermal management when designing with the TPS2392PW.
  • The TPS2392PW has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a voltage source. The device will shut down when the current exceeds the programmed threshold. Engineers can also use external circuitry to implement more complex overcurrent protection schemes.
  • The typical response time for the TPS2392PW's overcurrent protection feature is around 1-2 microseconds. However, this time may vary depending on the specific application and the sense resistor value. Engineers should consider the response time when designing their overcurrent protection scheme.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2392PW Overview

Use the download button to access the TPS2392PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
