Texas Instruments provides a recommended PCB layout in the TPS2393PW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to minimize electromagnetic interference (EMI), reduce thermal resistance, and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the TPS2393PW.
The maximum ambient temperature for the TPS2393PW is 85°C. As the ambient temperature increases, the device's performance may degrade, including reduced output voltage accuracy, increased output voltage ripple, and decreased efficiency. It is essential to ensure proper thermal management, such as providing adequate airflow or using a heat sink, to maintain the device's performance within the specified operating temperature range.
To troubleshoot issues with the TPS2393PW, start by verifying the input voltage, output voltage, and output current are within the specified operating ranges. Check the PCB layout for any signs of damage, overheating, or poor soldering. Use an oscilloscope to measure the output voltage ripple and switching frequency. Consult the datasheet and application notes for guidance on troubleshooting specific issues, and consider contacting Texas Instruments' technical support for further assistance.
The TPS2393PW is a commercial-grade device, and its reliability and safety features may not be suitable for high-reliability or safety-critical applications. Texas Instruments offers other devices, such as the TPS2393PW-Q1, which is an automotive-grade version of the device, with enhanced reliability and safety features. Consult the datasheet and application notes to determine the suitability of the TPS2393PW for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2393PW Overview

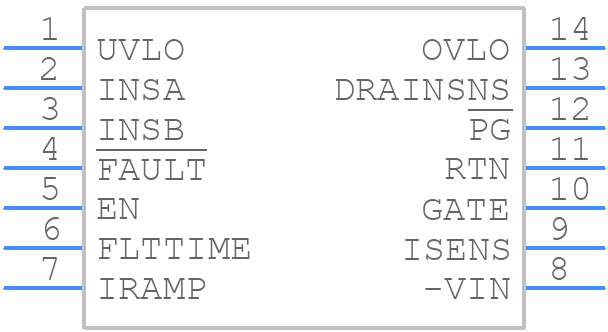

Use the download button to access the TPS2393PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
