The TPS2410PWRG4 can handle surge currents up to 100 A for 1 ms, but it's recommended to limit the surge current to 50 A for 1 ms to ensure reliable operation.
To ensure proper cooling, make sure to provide a sufficient heat sink, keep the device away from other heat sources, and ensure good airflow around the device. The thermal pad on the bottom of the package should be connected to a copper plane on the PCB to help dissipate heat.
The recommended PCB layout for the TPS2410PWRG4 includes using a solid ground plane, keeping the input and output capacitors close to the device, and using short, wide traces for the power paths. A 4-layer PCB with a dedicated power plane is also recommended.
The TPS2410PWRG4 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's current handling capability and ensure proper cooling when operating in high-temperature environments.
To troubleshoot issues with the TPS2410PWRG4, start by checking the input voltage, output voltage, and current. Verify that the device is properly cooled and that the PCB layout is correct. Check for signs of overheating, such as a high junction temperature or a reduced output current. Consult the datasheet and application notes for more troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2410PWRG4 Overview

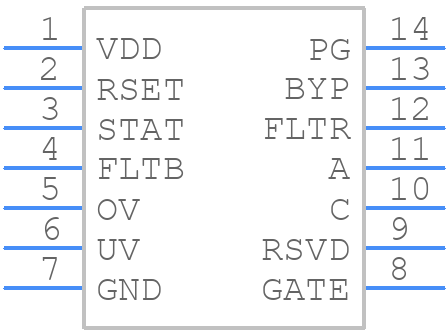

Use the download button to access the TPS2410PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Other Signal Circuits
